How to choose stainless steel casters
Author:

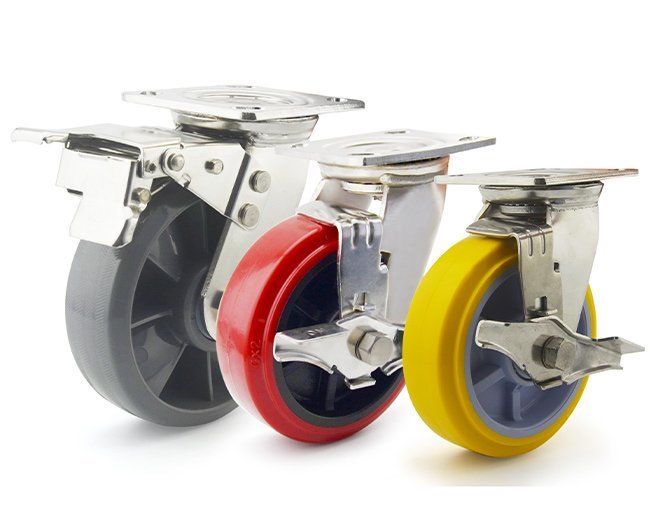

Casters were industrialised from the end of the 19th century in the West, so casters are generally expressed in inches. General trolleys use 5-inch or 4-inch casters. Stainless steel casters compared with ordinary industrial casters, the difference is that the bracket and standard parts are made of stainless steel, corrosion resistance.
In choosing stainless steel casters, pay attention to a few points.
1.size
Generally speaking, the larger the diameter of the casters, the less force used to push them, and the greater the ability to cross obstacles. We often use casters are 2 inches, 2.5 inches, 3 inches, 3.5 inches, 4 inches, 5 inches, 6 inches, 8 inches, 10 inches and so on. Supermarket shopping trolleys, logistics trolleys, tool trolleys and other casters that often need to be pushed are usually 4-6 inches. However, a larger diameter caster will raise the centre of gravity and increase the cost of the equipment, which needs to be considered comprehensively. If you do not need to push the equipment, such as items, refrigerators, etc., only need to move when clean, use no more than 3 inches of casters.
2. load-bearing
Stainless steel casters with the same diameter, generally have different options such as light, medium and heavy. The difference is to make the wheels and brackets have different thickness or material.
3.Wheel material
General wheel materials are PU, TPR, PP, rubber, nylon and so on. Polyurethane casters are the more widely used materials.
4.Method of installation
There are many ways of mounting casters, such as flat plate type, bolt type, hole top type, card spring type, etc. The base plate type is the most common, which can be used for heavy load or directly welded to the equipment.
5.Brake
Brake can be divided into brake wheel, brake bracket, and brake wheel and brake bracket.
6.Casters on the arrangement of equipment.
General equipment underneath the installation of 4 wheels, there are 6, or even more. Distribution is not the same. Layout is not the same, not only affect the cost, push feeling is also very different!
